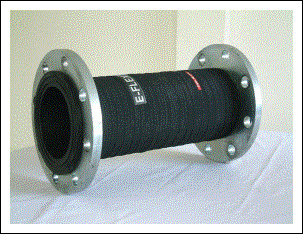

RUBBER PIPE CONNECTORS - BY MOULD ==  TYPE JM-21  ==
Nominal Diameter Natural  Allowable Movement from Neutral ( mm ) Operating Pressure
　 　 Length  Axial  Axial  Lateral Angular Positive  Vacuum Rating
Inch mm ( inch )  Compression  Extension  Deflection Degrees P.S.I.G  mm
1 25 12 4 4 45 18 150 660
1 1/4 32 12 4 4 40 14 150 660
1 1/2 40 12 4 4 35 11 150 660
2 50 12 4 4 30 9 150 660
　 　 18 6 4 45 14 150 660
2 1/2 65 12 4 4 25 7 150 660
　 　 18 6 6 38 11 150 660
3 80 12 4 4 20 6 150 660
　 　 18 6 6 30 9 150 660
4 100 12 4 4 15 5 150 660
　 　 18 6 6 23 7 150 660
　 　 24 8 8 30 9 150 660
5 125 12 4 4 11 4 150 660
　 　 18 6 6 17 6 150 660
　 　 24 8 8 23 7 150 660
6 150 12 4 4 11 3 150 660
　 　 18 6 6 17 5 150 660
　 　 24 8 8 23 6 150 660
8 200 24 6 6 18 3 150 660
　 　 30 7 7 23 4 150 660
10 250 18 4 4 12 2 150 660
　 　 24 6 6 16 3 150 660
12 300 18 4 4 9 2 150 660
* Note : Flange Available with DIN Standard, ANSI Standard, BS Standard, and JIS Standard.

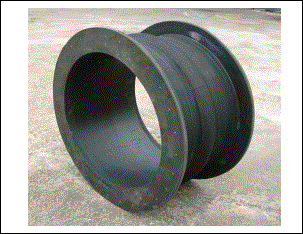

RUBBER PIPE CONNECTORS - BY HAND BUILT
FILLED ARCH EXPANSION JOINTS
* Available with any lengths as per user request * BY HAND - BUILT
