RUBBER JOINTS BY MOULD  ==  TYPE JM-10  ==
　 　 　 　 　 　 　 　 Dimension in cm

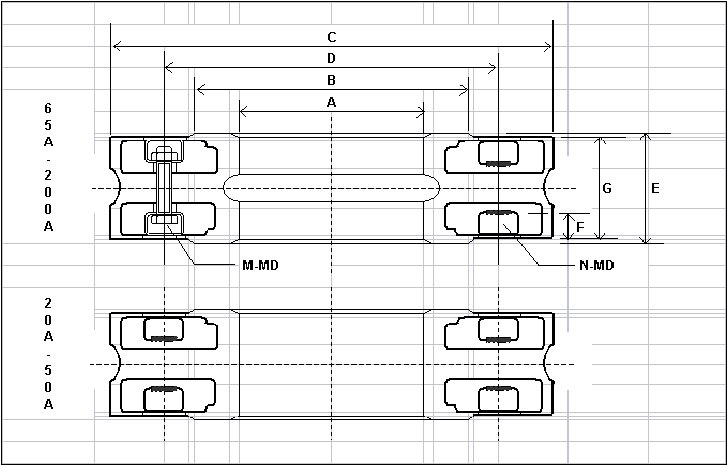

SIZE A B C D E F G N-MD M-MD
　 　 　 　 　 　 　 　 　 　
20 20 56 105 75 76 12 70 4-M12 　
25 26 66 115 85 76 12 70 4-M12 　
32 32 76 140 100 76 14 70 4-M16 　
40 40 88 150 110 76 14 70 4-M16 　
50 50 100 165 125 76 14 70 4-M16 　
65 68 120 185 145 76 14 70 4-M16 　
80 80 134 200 160 76 14 70 8-M16 4-M8
100 105 154 220 180 76 14 70 8-M16 4-M8
125 130 182 250 210 76 16 70 8-M16 4-M10
150 155 212 285 240 76 16 70 8-M20 4-M10
200 200 264 340 295 96 16 90 12-M20 6-M12
NOTE * Material is available with Neoprene,EPDM,Nitrile,Hypalon,and Butyl.
* Flange is available with DIN Standard,ANSI Standard,JIS Standard,
   and BS Standard.
