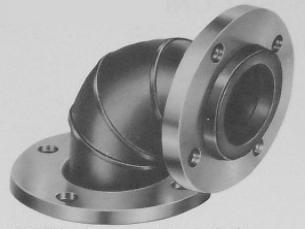

| ELBOW CONNECTORS |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| E-FLEX elbow
connector completely solves the vibratory |
|
| directional
problem at the pumps or any other location where |
| the piping
must make a right angle turn as it leaves the |
| equipment.The
E-FLEX neoprene elbow accepts motion in all |
| modes
without difficulty as the sphere is at the curvature of the |
| connector
and the flow through length is even longer than the |
| twin
sphere.Rather than taking additional space or using |
| additional
fittings, the elbow joint actually substitutes for the |
| cast welded
elbow that would ordinarily have to be used |
| anyway.The
cost of E-FLEX rubber bellow is comparable to the |
| steel
it replaces and certainly less than the cost of a steel |
| elbow plus a
straight line connector.When E-FLEX rubber |
| elbows
are used the pump foundation need no longer be made |
| large
enough to support the base elbows and this reduces the |
| cost of
the foundation.Because the piping must be properly |
| supported from
above rather than rest on the pump |
| foundation,there
is better chance that the pump foundation can |
| operate
properly.The reduced foundation weight is often |
| important
in lightweight equipment rooms as well. |
|

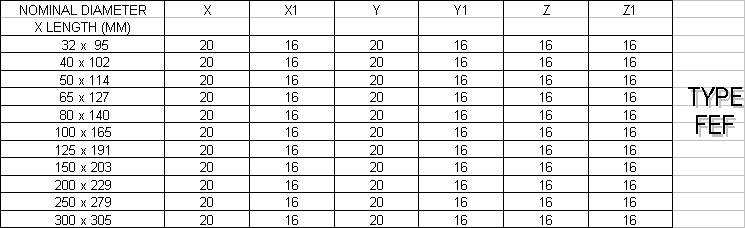

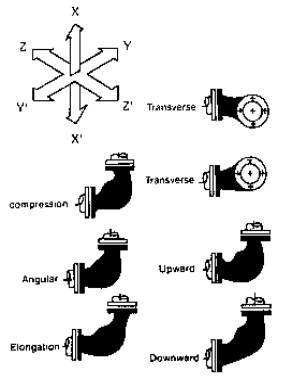

| MOVEMENTS |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
| OPERATING CONDITIONS : ( 32mm
– 300mm ) |
Operating Pressures |
Temperatures |
| Operating Pressure : 15 kg/cm2 ( 214 psi ) |
80oC |
85oC |
90oC |
95oC |
100oC |
105oC |
| Burst Pressure
: 60 kg/cm2 ( 850 psi ) |
214 Psi |
200 Psi |
180 Psi |
150 Psi |
145 Psi |
125 Psi |
| Vacuum Rating :
750 mm/hg |
|
| Temperature
: -10oC to 105oC |
|
| Fluids
: Water,Hot Water,Sea Water,Fluids,Weak Acids,Compressed Air. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
