TWIN SPHERE CONNECTORS
FTF-B TYPE
Nominal Diameter Installed Length ( mm ) Travel  ( mm ) Allowable Movements from Neutral Working Pressures
　 　 Natural Min - Max Total Axial Axial Lateral Angular Positive Vacuum
　 　 length Installed Compressed Compression Extension Deflection Degrees P.S.I.G Rating
inch mm 　 　 Extended 　 　 　 　 at 80oC mm
1" 25 254 216 - 269 204 - 284 50 30 45 40o 225 660
1 1/4" 32 254 216 - 269 204 - 284 50 30 45 40o 225 660
1 1/2" 40 254 216 - 269 204 - 284 50 30 45 40o 225 660
2" 50 254 216 - 269 204 - 284 50 30 45 40o 225 660
2 1/2" 65 254 216 - 269 204 - 284 50 30 45 40o 225 660
3" 80 254 216 - 269 204 - 284 50 30 45 40o 225 660
305 267 - 320 255 - 335 50 30 45 40o 225 660
4" 100 254 216 - 271 204 - 289 50 35 40 35o 225 660
305 267 - 322 255 - 340 50 35 40 35o 225 660
5" 125 254 216 - 271 204 - 289 50 35 40 35o 225 660
305 267 - 322 255 - 340 50 35 40 35o 225 660
6" 150 254 216 - 271 204 - 289 50 35 40 35o 225 660
305 267 - 322 255 - 340 50 35 40 35o 225 660
350 318 - 373 306 - 391 50 35 40 35o 225 660
8" 200 254 209 - 271 194 - 289 60 35 35 30o 225 660
305 260 - 322 245 - 340 60 35 35 30o 225 660
350 311 - 373 296 - 391 60 35 35 30o 225 660
10" 250 350 312 - 373 296 - 391 60 35 35 30o 225 660
12" 300 350 312 - 373 296 - 391 60 35 35 30o 225 660
F  Flange is available with DIN Standard,ANSI Standard,JIS Standard,and BS Standard.

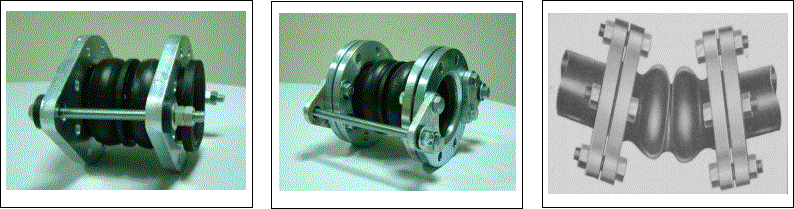

PRODUCT'S SAMPLES
